Electric Circuits

Model No. DL AM03

Learning Experience:

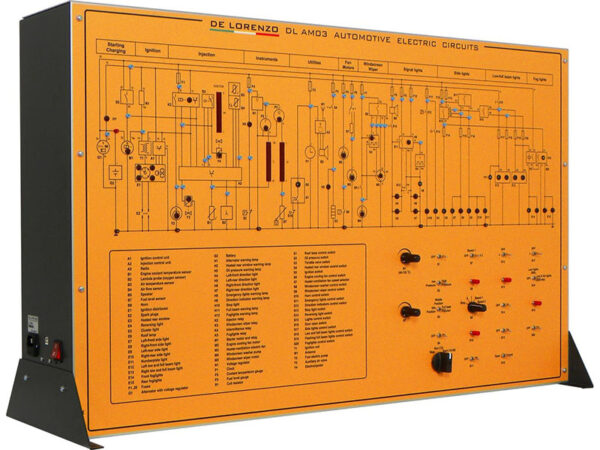

-This simulation panel deals with the study of the electric circuits in vehicles.
-The simulator analyses all the devices used in the electrical plant of the car.
-The synoptic diagram shows the symbols specified by the DIN regulations.

It is possible to simulate:
-Power supply and start
-Ignition
-Fuel injection
-Indicators
-Accessories
-Refrigeration and ventilation
-Windscreen wiper
-Signalling systems
-Lighting systems
-Side lights, beam lights and fog lights
