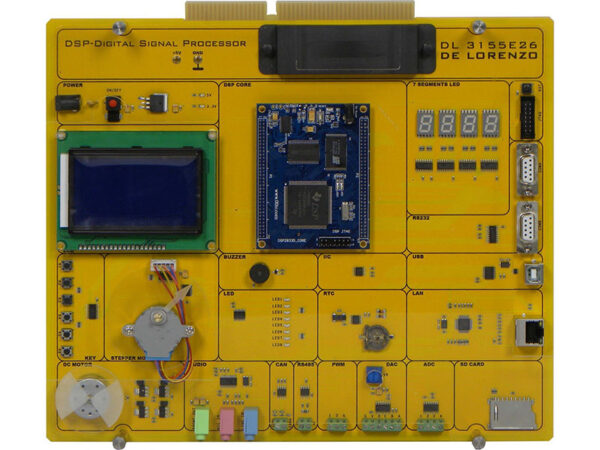

DSP -Digital Signal Processor

Model No. DL 3155E26

The design and construction of electronic circuits to solve practical problems is an essential technique in the fields of electronic engineering and computer engineering.
DSP trainer help students learn the internal architecture and programming of the DSP, floating-point data processing and operation of peripherals, such as UART, IIC, ADC, DAC, Timer, Display, USB, NET and so on.

Theoretical Topics:
– Introduction to the circuit board
– Assembly language program
– C language basic
– C language and assembly mutual calling
– DSP basic arithmetical operation
– Buzzer
– Keypad
– Timer
– External interruption
– Serial communication
– 485 communication
– I2C
– 7-segment LED display
– 1602 LCD display
– 12864 LCD
– sound recording and playing
– RTC
– AD /DA conversion
– AC/DC motor control
– SD card reading and writing
– extended RAM
– Internet communication
– USB communication
– FLASH programming
– Finite impulse response (FIR)
– Infinite impulse response(IIR)
– Fast Fourier transform(FFT)
