Domestic Refrigerating Systems

Model No. DL TM02

The simulator allows the study, the performing of experiments and the troubleshooting for the following systems:
– Single temperature domestic refrigerator
– Two temperatures domestic refrigerator
– Domestic freezer

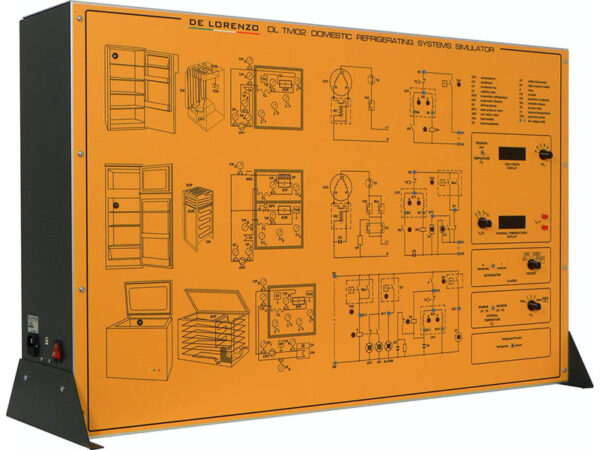

These systems are reproduced on the panel, through a colour representation which allows a complete analysis of the fluid circuit, of its components and of the electrical/electronic circuit for control and regulation.

TECHNICAL DESCRIPTION

The single temperature domestic refrigerator is composed of the following main elements:
– Hermetic compressor with thermal protection and intensity relay withoutstarting condenser
– Static condenser
– Capillary pipe for refrigerating fluid expansion
– Natural air circulation static evaporator
– Regulation thermostat
– Refrigerating fluid temperature/pressure test?points
– Possibility to simulate and test both the version for temperate climate and the version for tropical climate

The two temperatures domestic refrigerator is composed of the following main elements:
– Hermetic compressor with thermal protection and intensity relay with starting condenser
– Static condenser
– Capillary pipe for refrigerating fluid expansion
– Natural air circulation static evaporator for refrigerator
– Constant pressure valve
– Natural air circulation static evaporator and electrical defrosting resistance, for freezer
– Double regulation thermostat for refrigerator/freezer
– Refrigerating fluid temperature/pressure test?points
– Possibility to simulate and test both the 1, 2 and 3 star freezer and the 4 star freezer
– Possibility to simulate and test both the version for temperate climate and the version for tropical climate
