Domestic Air-Conditioning Systems

Model No. DL TM07

The simulator allows the study, the performing of experiments and the troubleshooting for the followin systems:
– window single block air-conditioner
– portable air-conditioner, split type
– fixed air-conditioner, split type

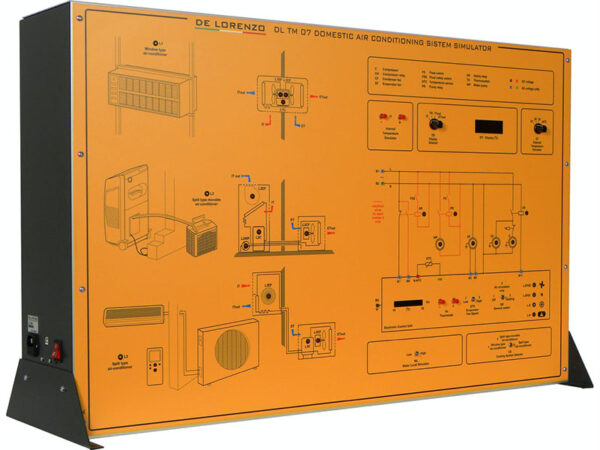

These systems are reproduced on the panel, through a colour representation which allows a complete analysis of the fluid circuit, of its components and of the electrical/electronic circuit for control and regulation.

TECHNICAL DESCRIPTION
The portable air-conditioner, split type, consists of the following main elements:
– single-phase motor compressor
– condenser with ventilation through single-phase electric motor
– evaporator with ventilation through single-phase electric motor
– capillary pipe
– regulation thermostat
– fan speed internal selector
– main switch
– switch for compressor insertion
– single-phase motor-driven pump for condensate evacuation
– possibility to simulate the internal and external temperature
– possibility to display the temperature values of the treated air
The fixed air-conditioner, split type consists of the following main elements:
– single-phase motor compressor
– condenser with ventilation through single-phase electric motor
– evaporator with ventilation through single-phase electric motor
– capillary pipe
– regulation thermostat
– fan speed internal selector
– main switch
– switch for compressor insertion
– possibility to simulate the internal and external temperature
– possibility to display the temperature values of the treated air

For more details download catalogue from here
