Discontinuous Automatic Control – DAC

Model No. DAC

This laboratory is designed for the study of Discontinuous Automatic Control systems where the controller is composed of a an element with discontinuous intervention.
A discontinuous controller is characterized by an output having two or more fixed states and its value is switched among these states according to the input value.

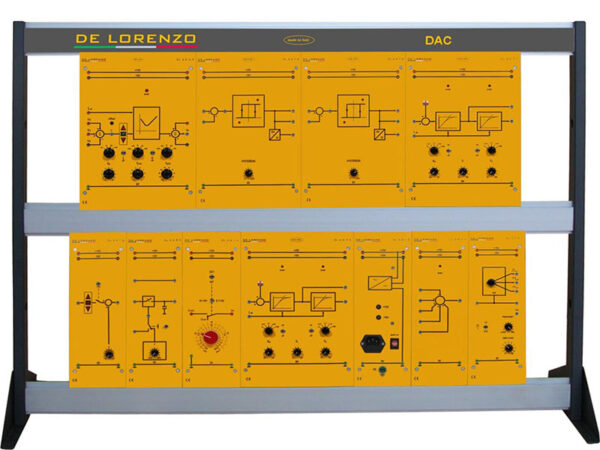

This trainer has a modular structure and it consists of didactic panels installed on a vertical frame.
It is supplied with a theoretical and practical manual.
The modularity of this didactic system can give the students a direct and immediate approach to the topics, offering the opportunity to study various subjects.

performing several experiments as following:
– Two position controllers, three range controllers
– Sampling acquisition techniques
– The two position controller in a 1st order process
– The three range controller in a 2nd order process
– The two position controller with delayed feedback in a 2nd order process
– The two position controller with elastic feedback in a 2nd order process
– The sampling control in a 4th order process
For more details download catalogue from here
