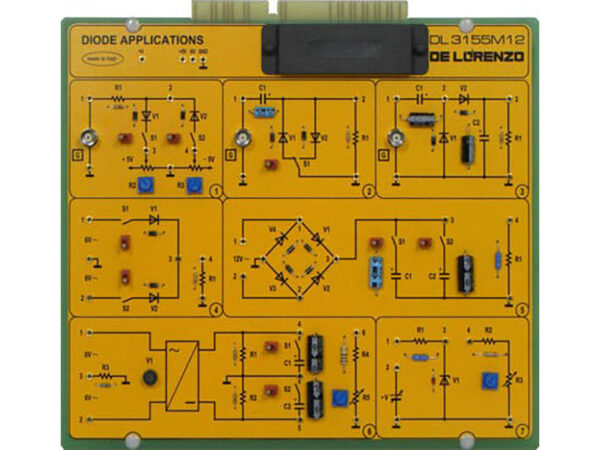

Diode Applications

Model No. DL 3155M12

Theoretical Topics:
– Behaviour Of The Diode Inserted In Circuits That Enclose Generators Of Variable Signals
– Simple And Double Clipper Circuits
– Clamper Circuits
– Half Wave Voltage Doublers
– Simple Half Wave Rectifier Circuit
– Double Half Wave Rectifier Circuit
– Bridge Rectifier Circuit
– Power Supplies
– Filters
– Regulators
– Fault Simulation

Circuit Blocks:
– Clipping Circuit
– Clamping Circuit
– One Half Wave Voltage Doubler
– Simple And Double Half Wave Rectifier
– Diode Bridge Rectifier (Graetz Bridge) With Capacitive Input Filter
– Dual Power Supply
– Stabilized Power Supply
