Model No. DL 2155DAC

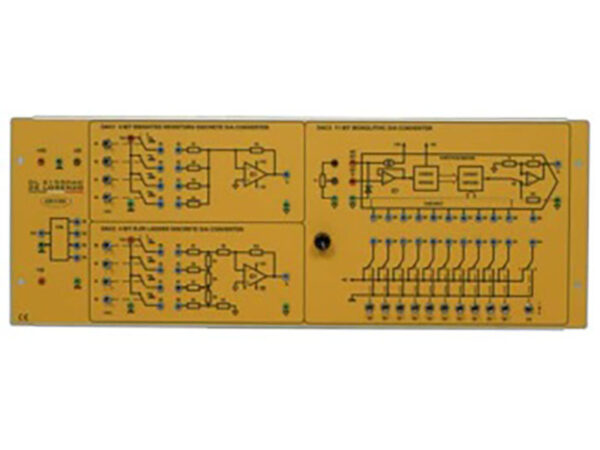

This Board Allows The Study Of The Operating Principle And Of The Main Characteristics Of A Digital To Analogue Converter.
The Board Is Composed Of 3 Independent Sections:
– A Weighed Resistances Discrete Components D/A Converter
– A Discrete Components D/A Converter In A R 2R Network
– A Monolithic 11 Bit D/A Converter While The First Two Sections Are Used To Highlight The
– Operating Principle Of Two Different D/A Converters,The Third One Is Used To Analyse The Operating Modes And The Characteristics Of The Converters That Are Commercially Available.
– The Board Is Supplied Complete With A Set Of Stackable,Plug-In Cables Of Suitable Lengths And Colours And With A Training Manual.
– Power Supply: ± 15 Vdc, 200 Ma And + 5Vdc, 200Ma
Experiments:
– Analysis Of The Operation Of A Weighed Resistances Converter
– Analysis Of The Operation Of A Converter In A R-2R Network
– Analysis Of The Conversion Errors
– Analysis Of The Operation And Of The Main Characteristics Of A Monolithic Converter
