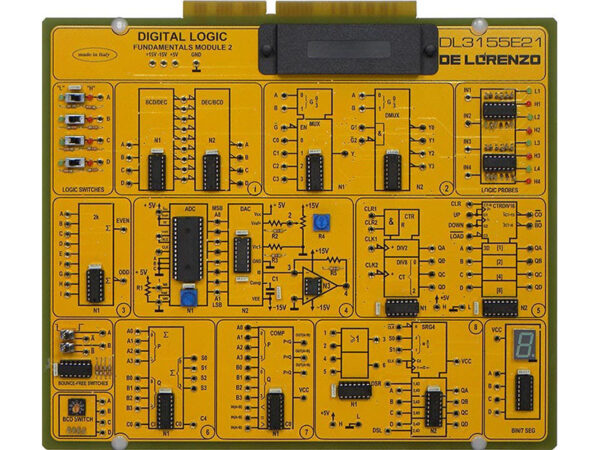

Model No. DL 3155E21
Theoretical Topics:
– Definition And Characteristics Of A Combinatory Logic Network
– The Bcd Code
– Dec/Bcd And Bcd/Dec Code Converters
– Encoders
– Decoders
– Multiplexer
– Demultiplexe
– Parity
– Parity Logic Circuits
– Nine Bit 74180 Parity Generator/Detector
– Unipolar Codes
– Bipolar Codes
– A/D Converters
– Staircase A/D Converter
– Adc Converter Of Parallel Or Flash Type
– Adc Converter With Simple Slope
– Adc Converter With Double Slope
– D/A Converters (Dac)
– D/A Converter With Weighed
– Resistances
– D/A Converter With R–2R Network
– 4 Bit Asynchronous Binary Counter
– 4 Bit Synchronous Binary Counter
– Asynchronous Decimal Counter
– Synchronous Decimal Counter
– Up/Down Synchronous Counters
– Adders
– Half Adder
– Full Adder
– Parallel Binary Adders – Four-Bit Adder
– Quantity Comparators
– Four-Bit Comparator
– Definition And Classification Of Shift Registers
– Operation Principle
– 4 Bit Bi-Directional Shift Registers
– Applications
– Fault Simulation
Circuit Blocks:
– Bcd Decimal Decoder / Bcd Priority Encoder
– Adc / Dac
– Multiplexer / Demultiplexer
– 7 Segment Driver / Display
– Parity Generator / Checker In Addition,
The Circuit Board Includes The Following:
– +5 V Regulated Supply
– Built In Clock Circuit
– Built In Pulse Generator Circuit
– Built In Counter Circuitry
– The 74Ls42 Decoder And Ls147 Encoder
– Ad673 Adc And Ad558 Dac
– The Ls151 Multiplexer And Ls155 Demultiplexer
– The Ls280 7-Segment Decoder / Driver
