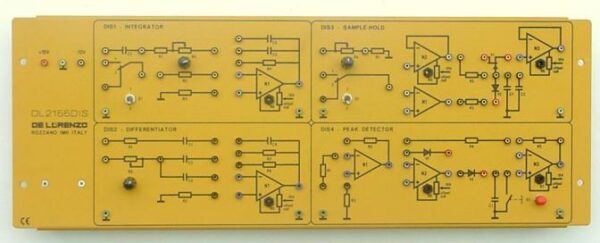

Model No. DL 2155DIS
The Board Is Designed To Analyze Important Circuits For Analogue Signal Processing Which Are Widely Used In Process Controls.
Acquisition Like Sample Holds Or Peak Detectors And Circuits For Signal Processing Like Differentiators And Integrators.
The Board Is Supplied Complete With A Set Of Stackable,Plug-In Cables Of Suitable Lengths And Colours And With A Training Manual
Power Supply: ± 15 Vdc, 750 Ma
Experiments:
– Analysis Of The Operation Of An Active Differentiator Circuit
– Analysis Of The Operation Of An Active Integrator Circuit
– Response Of Integrator And Differentiator Circuits To Dc,Square-Wave And Sinusoidal Signals
– Analysis Of The Operation Of A Sample-Hold Circuit
– Analysis Of The Operation Of A Positive And Negative
– Peak Detector With Open And Closed Loop
