Model No. DL CLIMA-6
Description:

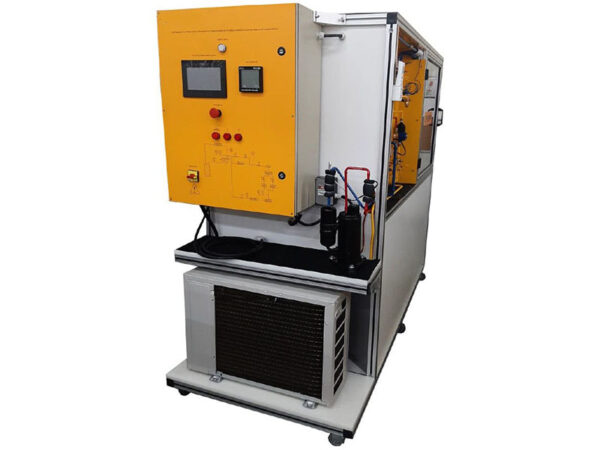

The bench for the Study of Energy Efficiency in HVAC (Air Conditioning) Systems was designed to allow the study and measurement of electrical consumption, temperature gradients, possible failures and loss of performance in an air conditioning system that includes the reverse cycle. It allows to demonstrate in practice, the differences in the energy consumption and the energy efficiencies of the system, with the insertion of faults that commonly occur in climate-controlled environments.
The bench is made of structural aluminum profiles, reinforced, anodized and finished on the surface.
Approximate dimensions are: 1500 mm wide x 900 mm deep x 1400 mm high, with an air conditioning chamber of approximately 0.5 cubic meters, and is suitable for the installation of drive equipment, electrical circuits, cooling gas pipes and system components, and instruments such as pressure gauges, valves, pressure switches, liquid inspection glass.
The entire circuit, its pipes and components are installed on an external panel to make it more didactic, which allows the operation of several valves that interfere with the operation of the system, in order to insert disturbances that simulate faults or losses of performance. The workbench consists of the following modules/functions.
SYSTEM DIDACTIC ACTIVITIES
a) Electrical experiments designed to study the electrical principles used in air conditioning and test its components.
b) Diagnosis of the electrical part and monitoring of the working conditions.
c) Electrical experiments related to the cooling system and component operating states.
d) Pipe design, such as pipe cutting, pipe bending, pipe welding, and pipe expansions and their connections.
e) Analysis of the complete air conditioning vacuum system and filling with cooling gas.
f) Vacuum cleaning and filling with cooling gas, electrical connections and monitoring of working conditions.
g) Power measurements
h) Pressure measurements
i) Temperature measurements
j) Energy efficiency assessments in various modes and work points.
k) Supervision program
THE SYSTEM INCLUDES
– Manuals with theoretical information and practical activities
– A set of leads with a banana plug in sufficient quantity to make all necessary connections.
