Model No. DL 2155COM

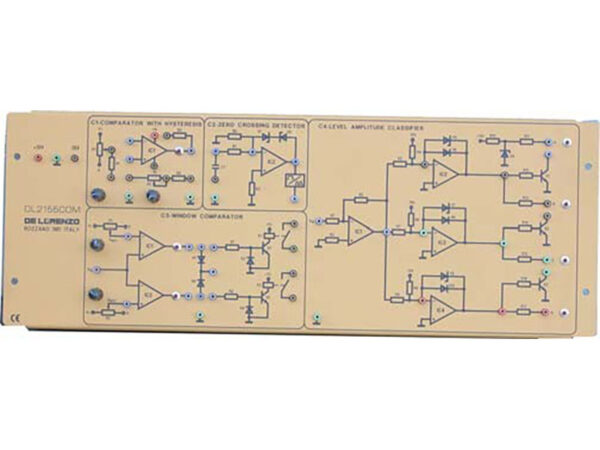

The Board Is Divided Into Four Sections For The Study of Respectively:
– Hysteresis Comparator
– Zero Crossing Detector
– Window Comparator
– Amplitude Level Classifier
– The Outputs Of The Comparators Are Provided With Led To Show Their Electrical State.
– The Board Is Supplied Complete With A Set Of Stackable,PlugIn Cables Of Suitable Lengths And Colours And With A Training Manual.
– Power Supply: ± 15 Vdc, 750 Ma
Experiments:
– Analysis And Checking Of Symmetrical And Asymmetrical Hysteresis Cycle Comparators
– Analysis And Checking Of Zero Crossing Detector And Window Comparator
– Analysis Of Amplitude Detecting Circuits With Logic Output Decoding
– Analysis And Checking Of Inverting And Non Inverting Voltage Comparators
– The Board Is Designed To Study The Operating Principle Of Voltage Comparators And To Perform Experimental Checking Of The Most Popular And Important Circuits Realized With These Components.
