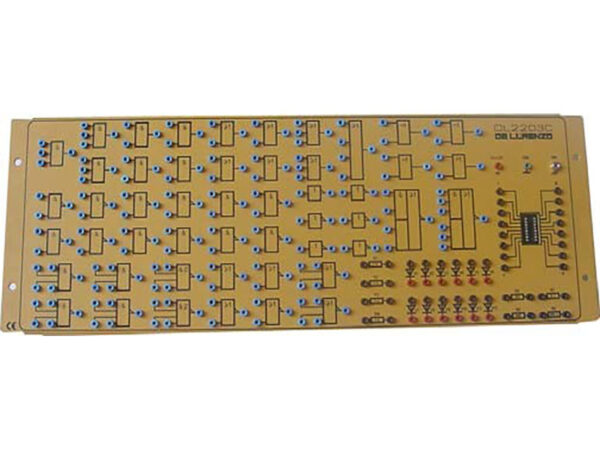

Model No. DL 2203C
This Board Allows The Study Of The Following Combinatory Circuits:
Adders, Subtractors, Multipliers, Code Converters,Multiplexers And Demultiplexers, The Board Is Composed Of:
– 4 And (2-Input)
– 3 And (3-Input)
– 12 Nand (2-Input)
– 4 Nand (4-Input)
– 2 Nand Trigger (4-Input)
– 4 Or (2-Input)
– 2 Or (3-Input)
– 1 Or (4-Input)
– 4 Nor (2-Input)
– 2 Nor (4-Input)
– 4 Ex Or (2-Input)
– 6 Inverters
– 2 Aoi (2 And 3-Input)
– 12 Silicon Diodes
– 8 Resistances
– 1 Dual In Line 16-Pin Socket
– Power Supply: 5Vdc, 3W
