Civil Installations

Model No. DL 2101

Kit of components with experiment manual with 21 experiments including brief theoretical mentions and practical diagrams of the main circuits that are used in civil installations.
Each experiment has a well defined target and shows the electric diagram and the material that is necessary for assembling the installation.

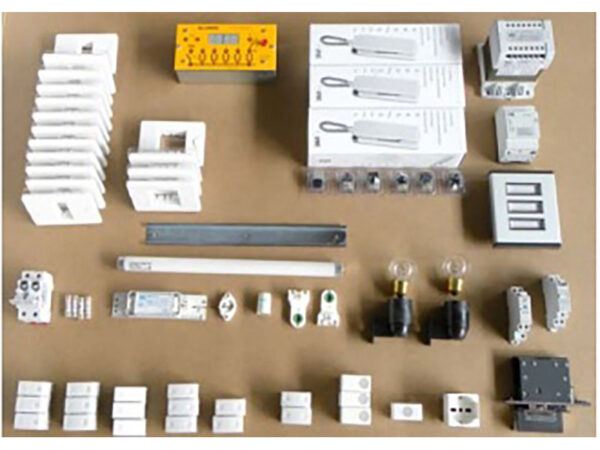

The kit is composed of: 3 general purpose pushbuttons, 3 bell pushbuttons, 3 door opener pushbuttons, 3 switches, 2 change over switches, 2 reversing switches, 1 mains socket, 3 bells, 1 buzzer, 2 fuse holders complete with fuses, 1 stairs light timing relay, 1 pulse relay, 2 lamp holders complete with incandescent lamps, 1 fluorescent lamp complete with lamp holder, starter and choke, 1 electric lock, 1 external pushbutton panel with 3 pushbutton, 1 signaling panel with 4 displays, 3 wall type entry phones
complete with buzzer and 3 pushbutton, 1 power supply for the entry phone, 1 transformer mains/2x12V, 1 piece of DIN section, 1 set of screws to fix the components, 2 containers.

With this kit it is possible to perform the following experiments:
– Single point controlled lighting system
– Single point controlled lighting system with socket
– Switch controlled two-lamps lighting system
– Two point controlled lighting system
– Three point controlled lighting system
– Four point controlled lighting system
– Circuit breaking relay controlled lighting system
– Switching relay controlled lighting system
– Time relay controlled lighting system
– Hot cathode fluorescent lamp system
– Signalling installations
– Single control signalling system
– Reciprocal control signalling system
– Display indicator and reset pushbutton signalling system.
– Ringing plant with doors and main entrance control
– Electric lock bell system
– Two reciprocal call house phones at short distance
– Two reciprocal call house phones at long distance
– Coupled two house phones system
– Main house phone and two shunted house-phones system
– Intercommunicating house phone system

For more details download catalogue from here
