Civil And Hotel Installation Systems

Model No. DL 2101E

Kit Of Components And Teaching Manual Including 23 Experiments With Brief Theoretical Mentions And Practical Schemes Of The Main Circuits Available In Civil Buildings AndHotels Installations.
Each Experiment Has A Well Defined Target And AlwaysShows The Electrical Scheme And The Necessary Material To Perform The Plant.

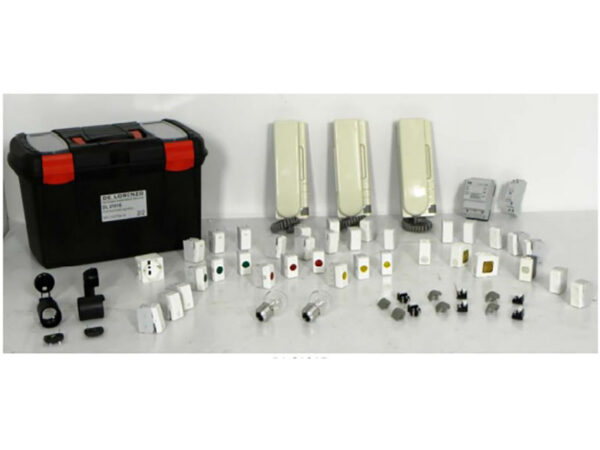

The Kit Is Composed Of 8 General Purpose Pushbuttons, 3 Bell Pushbuttons, 3 Opening Door Pushbuttons, 9 Signaling Lamps, 3 Switches, 2 Change?Over Switches, 2 Reversing Switches, 1 Mains Socket, 3 Bells, 1 Buzzer, 6 Latching Relays, 2 Fuse Holders With Fuses, 1 Stairs Light Timing Relay, 1 Pulse Relay, 2 Lamp Holders With Incandescent Lamps, 1 Fluorescent Lamp Complete With Lamp Holder, Starter And Choke, 1 Electric Lock, 1 Push Button Panel With 3 Pushbuttons, 1 Panel With 4 Displays, 3 Wall Type Entry Phones Complete With Buzzers And 3 Pushbuttons, 1 Power Supply For The Entry Phone, 1 Transformer Mains/2X12V, 1 Piece Of Din Section, 1 Set Of Screws To Fix The Components,2 Containers.

With This Kit It Is Possible To Perform The Following Experiments:
– Single Point Controlled Lighting System
– Single Point Controlled Lighting System With Socket
– Switch Controlled Two Lamps Lighting System
– Two Point Controlled Lighting System
– Three Point Controlled Lighting System
– Four Point Controlled Lighting System
– Circuit Breaking Relay Controlled Lighting System
– Switching Relay Controlled Lighting System
– Timed Relay Controlled Lighting System
– Hot Cathode Fluorescent Lamp System
– Signalling Installations
– Single Control Signalling System
– Reciprocal Control Signalling System
– Display Indicator And Reset Pushbutton
– Signalling System
– Ringing Plant With Doors And Main Entrance Control
– Electric Lock Bell System
– Two Reciprocal Call House Phone At Short Distance
– Two Reciprocal Call House Phone At Long Distance
– Coupled Two House Phone System
– Main House Phone And Two Shunted House phones System
– Intercommunicating House Phone System
– Audience Request System
– Hotel System
For more details download catalogue from here
