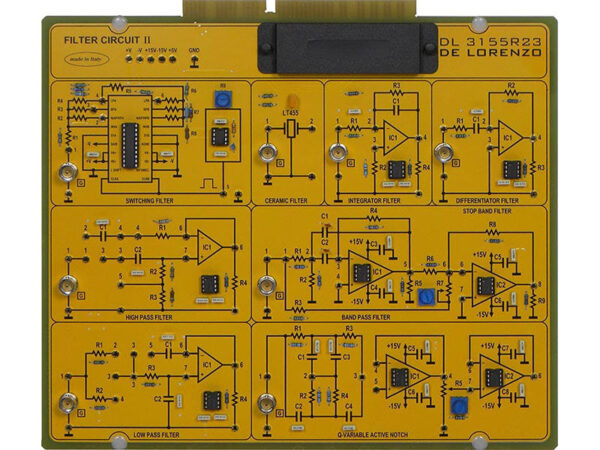

Circuits With Filters

Model No. DL 3155R23

Theoretical Topics:
– The Ideal Operational Amplifier
– The Negative Feedback
– Inverting Configuration
– Not Inverting Configuration
– Integrator
– Differentiator
– Filters And Parameters
– Filters Transfer Functions
– Study Of Ceramic Filters
– Study Of Active Filters
– Study Of Passive And Active Notch Filters
– Study Of Switching Filters (Chebyshev Filter)
– Filters In Cascade
– Attenuation Characteristics Of The Active Low-Pass, High-Pass, Stop-Band And Band-Pass Filters
– Fault Simulation

Circuit Blocks:
– Switching Filter
– Ceramic Filter
– High Pass Filter
– Band Pass Filter
– Stop Band Filter
– Low Pass Filter
– QVariable Active Notch Filter
– Integrator
– Differentiator
– Note: This Board Is Not Provided
– With Cai Software

For more details download catalogue from here
