Charging And Ignition Circuits

Model No. DL 3155A02

The design and construction of electronic circuits to solve practical problems is an essential technique in the fields of electronic engineering and computer engineering.

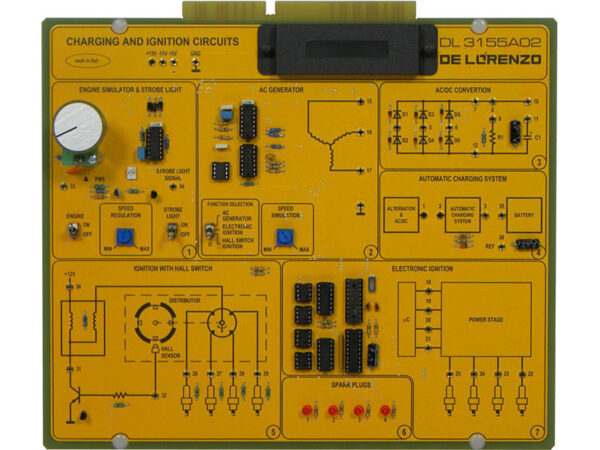

With this board the students can study and analyse the circuits of battery charge and motor ignition.

THEORETICAL TOPICS
– AC generator (alternator)
– Tachogenerator
– AC/DC conversion
– Automatic charge system
– Hall effect switch
– Stroboscopic lights
– Induction coil
– Excitation circuit of the ignition with Hall
– switch
– Ignition system

CIRCUIT BLOCKS
– Engine simulator and strobe light
– Ac generator
– AC/DC convertion
– Automatic charging system
– Ignition Hall switch
– Electronic ignition
– Complete with theoretical and practical manual.

For more details download catalogue from here
