Model No. FL 07.2

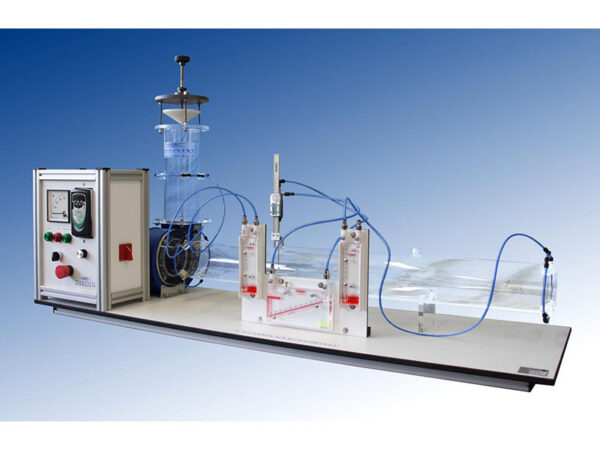

This equipment has been developed for the study of the characteristics of a centrifugal fan, through the realization of a wide range of practices and experiences.
A pitot tube allows the measurement of air velocity at any diametral point of the tube, measuring the position of the tube through a digital display.
The vertical and inclined manometers allow a correct reading of the pressures.
The equipment is supplied with 2 different impellers (blades tilted forward and backward), which can be exchanged in a very simple way.
Through a control of 3 positions we control the direction of rotation of the motor.
The frequency shifter allows the variation of the speed of rotation, while we observe the consumed electrical power in a wattmeter.
Through a conical cap in the air outlet we can cause an adjustable pressure drop, and study the operating points of the fan.
For more details download catalogue from here
