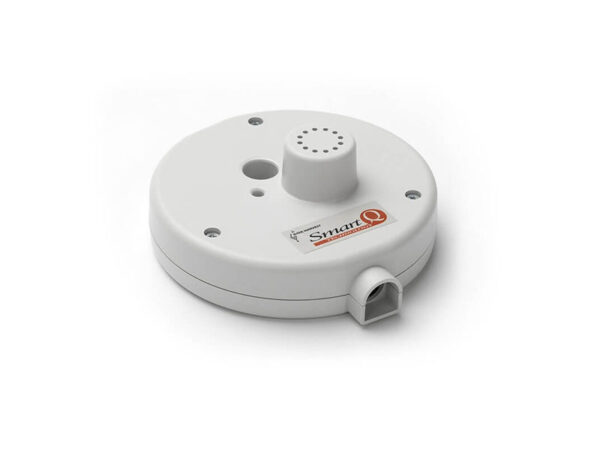

Carbon Dioxide Sensor

Model No. 3152

The sensor is designed and optimised to measure carbon dioxide levels found in the air around photosynthesising plants and small, respiring animals and includes two ranges 0 to 10,000 ppm and 0 to 100,000 ppm.

Specification
– Ranges: 2, 0 – 10,000 ppm and 0 – 100,000 ppm
– Accuracy @ – 25C, 103 kPa: Between 0 – 20,000 ppm
= 100 ppm or 10% of value, Between 20,000 – 50,000 ppm = 20% of value, Above 50,000 ppm are qualitative only
– Response time: 20 seconds
– Operating temperature range: 5 to 40?C
– Operating humidity range: 5 to 95% relative humidity; noncondensing

What’s in the box
– 1x Carbon Dioxide Sensor
– 1x Steel support rod (80 mm long x 10 mm diameter with a M6 thread)
For more details download catalogue from here
