Brushless Dc Motor

Model No. DL 2131

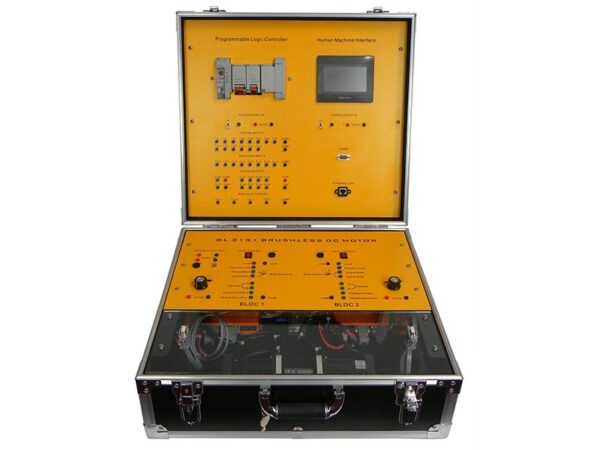

DC brushless motor, PLC and human Machine interface It has been developed as an “open” system; each hardware component is independent from the other ones, allowing the study of each system in autonomous way, connecting other existing equipment of the laboratory.

Features:
-It is easy to move with its portable structure
-The trainer can be used to study three different didactic field: DC brushless, HMI, PLC
-Trainer hardware characteristics permit to the students to study independently or together the parts of the trainer

LIST OF EXPERIMENT:
– PLC digital I/O experiment
– PLC analogue I/O experiment
– PLC and HMI Communication Experiment
– Brushless Motor Speed Control Experiment
– Brushless Motor Torque Control Experiment
– Speed feedback experiment
– HMI-PLC – Brushless Motor Simulation Control Experiment
– Drawing speed curve
– Brushless motor starting torque measurement experiment
– Brushless motor torque saturation experiment

The trainer is composed of three different parts: PLC, HMI, BLDC system.

PLC:
Advanced Plc that includes digital input, digital
output, analogue input, analogue output and
communication port

HMI:
– Display: TFT LCD, 4.3”, 480×272
– Max Colours: 16.7M
– Touch screen: 4.3 inch, 4?wire resistive
– CPU and core logic: 32Bit RISC Cortex-8A 600MHz
– DRAM: 128M
– I/O: 1 serial port COM1 RS485 and 1 Ethernet Port
– Power supply: 24Vdc

BLDC system:
Including two drivers and two BLDC motors connected between them with couplings.
Each BLDC motor can run separately and could be driver and load.

Driver features:
– Power supply?24Vdc
– RS232 communication
I/O:
– ON/OFF control
– Direction control
– Torque mode
– Speed mode
– Speed feedback
– Direction feedback
– Torque saturation

BLDC motor:
– Brushless DC motor
– Power: 0.2kW Rated Voltage: 24Vdc
– Rated Speed: 3000 rpm
– Rated Torque: 0.6 Nm
For more details download catalogue from here
