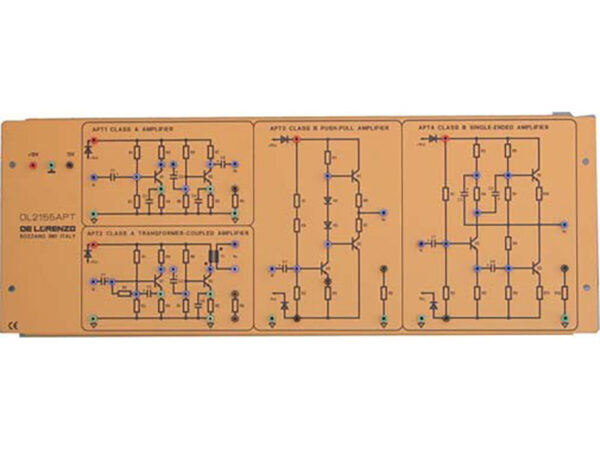

Bjt Power Amplifiers

Model No. DL 2155APT

The Board Represents An Extremely Useful Tool For Studying The Power Amplifier Of A Class And B Class.
In Fact, It Provides 4 Amplification Architectures Among The Most Common In Preamplifiers (A Class) And Final Amplifiers (B Class),
The Board Is Supplied Complete With A Set Of Stackable, Plug-In Cables Of Suitable Lengths And Colors And With A Training Manual.
Power Supply: ± 15 Vdc, 1 A

Experiments:
– Checking The Conversion Efficiency And The Figure Of Merit In A A Class Amplifier With Dc Current Flowing Through The Load
– Determination Of The Typical Parameters Of A A Class Amplifier With An Output Transformer
– Checking The Characteristics Of A Complementary
– Checking The Characteristics Of The Single-Ended Amplifier
For more details download catalogue from here
