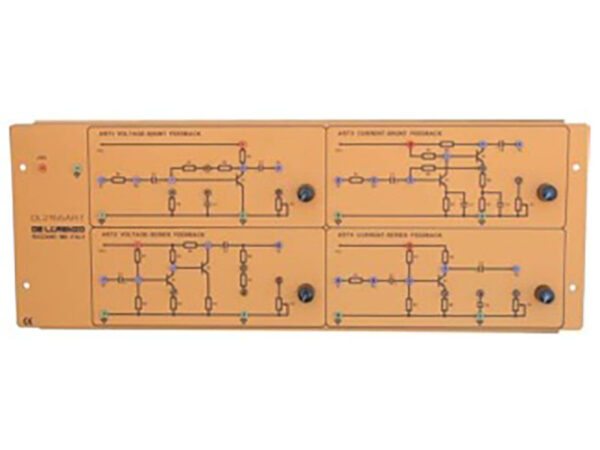

Model No. DL 2155ART
The Board Is Designed To Afford The Problems Connected To The Introduction Of Negative Feedback Into An Amplifier, And To Its Influence On The Different
Parameters: Amplification, Bandwidth, Input And Output The Different Feedback Configurations Are Theoretically
Analyzed And Experimentally Checked: Series Voltage, Parallel Voltage, Series Current, Parallel Current.
Single Stage And Multistage Amplifiers Are Used, The Latter In Direct Coupling.
The Board Is Supplied Complete With A Set Of Stackable, Plug-In Cables Of Suitable Lengths And Colours And With A Training Manual.
Power Supply: + 15 Vdc, 750 Ma
Experiments
– Analysis And Study Of An Amplifier With Series Or Parallel Voltage Feedback And With Series Or Parallel Current Feedback
– Analysis And Study Of Multistage Amplifiers With Direct Coupling
– Influence Of Feedback In The Amplifier: Study Of The Amplifier With Connected/Unconnected Feedback
