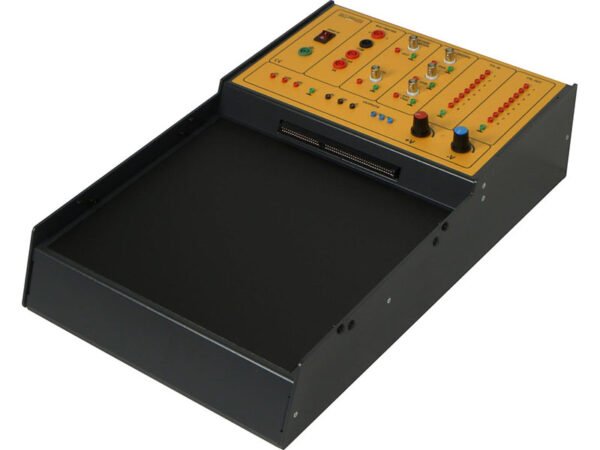

Base Frame With Power Supply And Interface To Pc And Virtual Instrumentation

Model No. DL 3155AL3

Power Supplies:
– 0/+15 Vdc, 1 A
– 0/15 Vdc, 1 A
– +15 Vdc, 1 A
– 15 Vdc, 1 A
– +5 Vdc, 1 A
– 5 Vdc, 1 A
– 6 – 0 – 6 Vac, 1 A

Virtual Instrumentation:
Multimeter
– 3 And 3/4 Digits
– Dc/Ac Voltage: 400 Mv, 4 V, 40 V, 400 V Or Autorange
– Resistance: 400 Ohm, 4 Kohm, 40 Kohm, 400 Kohm, 40 Mohm
– Dc/Ac Current: 200 Ma, 8 A

Function Generator
– Sinusoidal, Square , Triangular, Dc
– Frequency: 0.1 Hz ? 200 Khz
– Output: ± 10 V
– Attenuator: 0 Db, 10 Db, 20 Db
– Input: Dc/Ac, 1 Mohm
– Meas. Ranges: 20/50/100/200/500
– Mv, 1/2/5 V Per Division
– Sampling Frequency: 100 Hz To 10 Mhz
– Dual Trace Oscilloscope

Digital Pattern Generator
– Output Rate: From 200Ms To 10S
– Pattern Selection: Manual Or Automatic
– Display: 20 States Of The Patterns Logic Wave Analyzer
– Display: 20 States Of The Inputs

Features:
– Interface Board For Connection To Pc.
– Robust Structure And Modern Design.
– Voltage Regulation And Protection Against Over Voltage Or Short Circuit.
– Complete With A Set Of Connecting Cables.
For more details download catalogue from here
