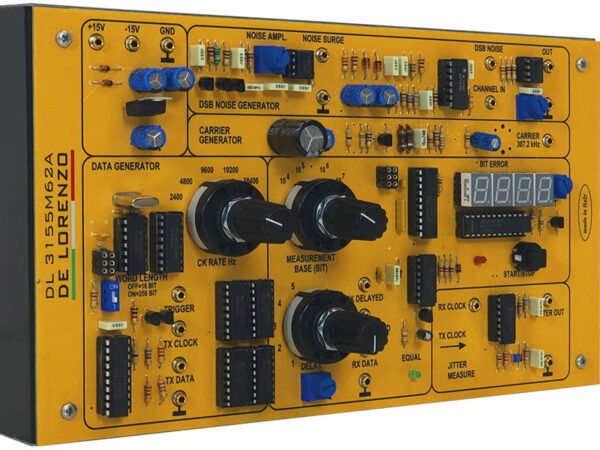

Model No. DL 3155M62A
– Clock And Carrier Generator, Obtained By A Single Quartz Source At 2.4576 Mc/S With A Selectable Clock Frequency Of 2400, 4800, 9600, 19200 Or 38400 Cycles / Sec,
– Pseudo-Random Data Generator That Generates Two Random Sequences Of 1 And 0 Of Different Length, 15 Bits And 255 Bits,
– Bit Error Rate (Ber) Meter,
– Digital Delay Equalizer,
– Artificial Noise Generator, That Generates A Quasi White Spectrum Signal In The Band 2 – 40 Khz,
– Jitter Meter.
Circuit Blocks:
– Nrz (Non-Return To Zero) Coding And Decoding
– Rz (Return To Zero) Coding And Decoding
– Manchester Coding And Decoding
– Bi-Phase Coding And Decoding
– Duo-Binary Coding And Decoding
– Ask Modulation And Demodulation
– Fsk Modulation And Demodulation
– Psk Modulation And Demodulation
For more details download catalogue from here
