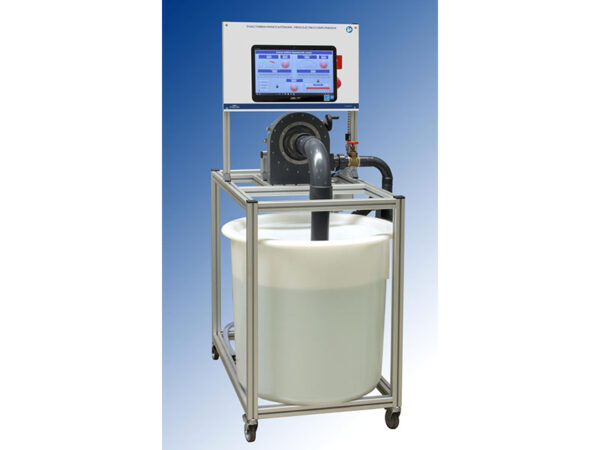

Model No. TH 04.2
The TH 04.2 equipment simulates a small-scale installation with a Francis turbine or reaction.
It is designed for the study and display both the behavior and the characteristics of a Francis turbine.
Among its most notable features include the turbine housing is transparent so you can see how the water flow turns the impeller.
In this case, besides the rotation of the impeller, the movement of the fins guide the distributor with which the flow regulation turbine inlet is achieved is also observed.
Regulating valve has water inlet, which allows working with different flows as required.
The braking system by electric brake allows working at different speeds.
The equipment is computerized which means that the inlet pressure to the turbine, the flow, the braking torque, ultimately, all variables are displayed in the integrated team structure computer.
The turbine can be operated completely autonomously, thanks to the team is composed of water tank, pump and all the necessary instruments on a laboratory trolley.
For more details download catalogue from here
