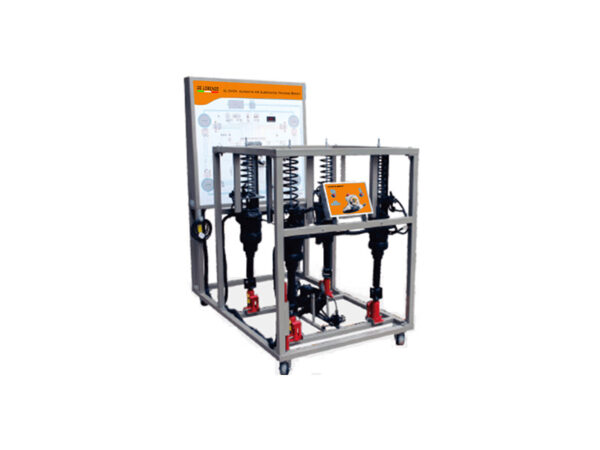

Automatic Air Suspension Training Bench

Model No. DL DM94

LEARNING EXPERIENCE
This demonstration bench is based on a Toyota Lexus LS400 air suspension system.
The device applies to theoretical teaching and maintenance training of the automobile suspension system for secondary vocational skill schools.

Main Characteristic:
This didactic bench can demonstrate the operation of air suspension system. By operating the vehicle body height-control switch or adjusting the suspension height, it is possible to manage the air suspension ECU compressor so that the height control solenoid valve and shock absorber hardness controller can work. In this way, it can be adjusted the air suspension height and the shock absorber hardness.

Main component:
– Detection control panel (with various detection terminals)
– Air suspension ECU
– Diagnosis socket
– Compressor
– Height solenoid valve
– Height solenoid valve
– Height control relay
– Height control switch
– Left and right front suspension control actuators
– Left and right front control sensors
– Left and right rear suspension control actuators
– Left and right rear control sensors
– Digital frequency meter
– Various simulated switches and signaling devices
– Lifting jacks
– Steel rulers for height measurement
– Intelligent fault-setting and appraisal system
– Moveable framework
