Antenna Trainer

Model No. DL 2595

The trainer has been designed to introduce students to the comprehension of the antenna’s operation mode.

TECHNICAL FEATURES:

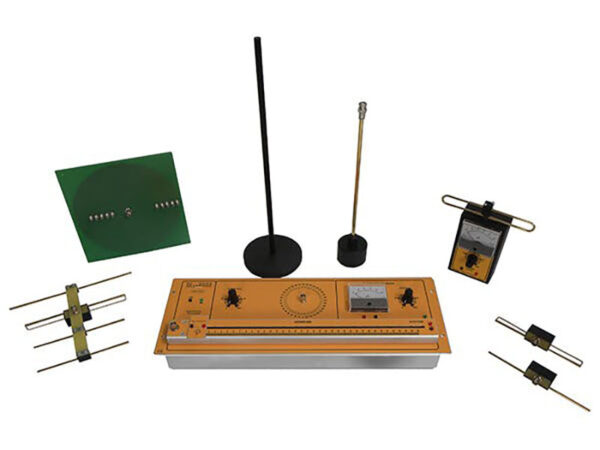

The trainer includes: basic panel with generator, Lecher line, RF detector, mobile receiver, joint for fixing to the base, supporting base for receiver, reflector, locking knob, shielded connecting cable between the Lecher line and the detector with banana plugs, diam. 2 mm (length = 60 cm), set of cables for measuring and connections, coaxial support for antenna (mast) with turning base, ‘T’ BNC, set of 5 monopoles with banana terminations, different lengths, ground-plane antenna, Yagi antenna, folded dipole antenna, simple dipole antenna, coaxial cable RG59 with F/F BNC, length = 60 cm complete with M/M and F/F adapters. Working frequency: from 860 to 950 MHz.Input power supply: – 15 Vdc, 200 mA

EXPERIMENTS DESCRIPTION:
-Antenna trainer basic components studies As introductory experiment,
-get familiar with the methods of handling Ultra High Frequency radio systems.
-Study of the wavelength
-study a short-circuited transmission line
-Simple polarization studies
-Study of elementary dipoles
-Study of the folded dipole
-Use of the Yagi Antenna
-Study of the use of the Ground Plane Antenna
-Study of the experimental setup with both mitting and receiving antennas measurements
