Model No. DL 2155ADC

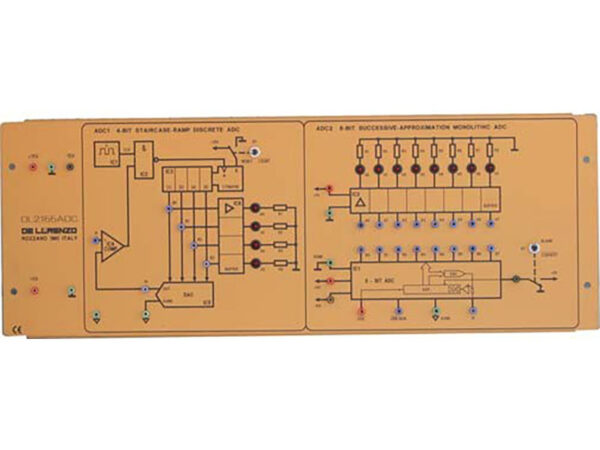

This Board Allows The Study Of The Operating Principle And Of The Main Characteristics Of Analogue To Digital Converters.
The Board Is Divided In 2 Sections: In The First One A Discrete Component Realization Is Provided Of A Ramp A/D Counter Converter, While In The Second Section There Is A Monolithic Converter.
The First Section Is Used To Highlight The Operating Principle Of An A/D Converter, While The Second One Is Mainly Used To Analyse The Operating Modes And The Characteristics Of The Converters That Are Commercially Available.
The Board Is Supplied Complete With A Set Of Stackable,Plug In Cables Of Suitable Lengths And Colours And With A Training Manual.
Power Supply: ± 15 Vdc, 100 Ma And + 5Vdc, 200Ma
– Analysis Of The Operation Of A Counter Converter
– Analysis Of The Operation And Of The Main Characteristics Of A Monolithic Converter
– Analysis Of The Conversion Errors
For more details download catalogue from here
