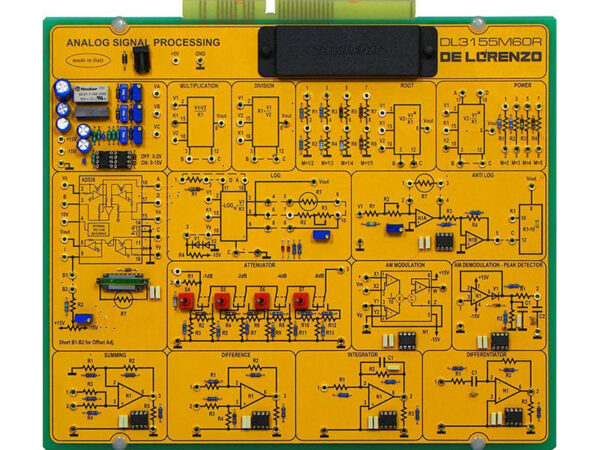

Model No. DL 3155M60R
Theoretical Topics:
– Familiarization With Analogue Computing Technique
– Basic And Advanced Linear Operations
– Simultaneous Multiplication And Division
– Analog Computation Of Powers And Roots
– Log Ratio Computation
– Antilog Computation
– Square Root Operation
– Attenuator Overview
– Characteristics And Key Specifications For Fixed And Step Attenuators
– Audio Attenuators
– Forms Of Amplitude Modulation
– Amplitude Modulation And Demodulation Methods
– The Operational Amplifier Characteristics
– Main Configurations Of The Oa
– Fault Simulation
Circuit Blocks:
– Reference Power Supply Unit
– Real Time Analog Computational Unit
– One?Quadrant Multiplication Unit
– One?Quadrant Division Unit
– Root Circuit
– Power Circuit
– Log Ratio Operation With Thermic Compensation
– Antilog Operation With Thermic Compensation
– Attenuator
– Amplitude Modulation And Demodulation
– Non Inverting Summing Block
– Difference Amplifier
– Integrator
– Differentiator (Shunt)
For more details download catalogue from here
