Model No. DL 2155SMA

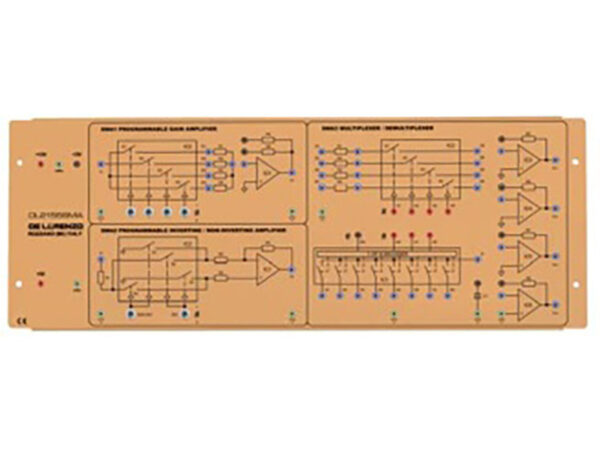

The Board Is Designed To Study The Problems Related To The Application Of Analog Switches.
These Switches,And The Multiplexers, Find A Wide Application In Data Acquisition Systems, Telephone Systems, Process Controls And In All The Situations Where Low Power Signals Have To Be Switched With High Switching Speed.
The Board Is Supplied Complete With A Set Of Stackable,PlugIn Cables Of Suitable Lengths And Colours And With A Training Manual.
Power Supply: ± 15 Vdc And + 5 Vdc, 750 Ma
Experiments:
– Analysis Of Analogue Switches Operations And Performances
– Analysis Of Some Typical Applications Of Analogue Switches As Adjustable Gain Amplifiers, Inverting/Non Inverting Configuration, Programmable Amplifiers And Programmable Attenuators
– Analysis Of A Multiplexer With Four Analogue Inputs
– Analysis Of A Demultiplexer With Four Analogue Outputs
