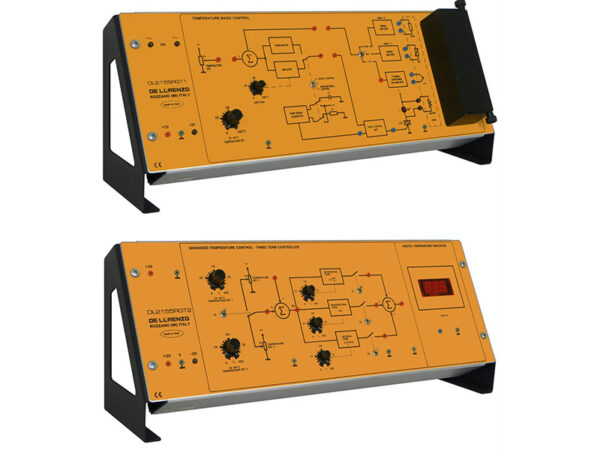

Model No. DL 2155RGT
This Board Includes Two Reference Signal Generators, A Comparison Node And The Three Terms Network (Proportional, Integral And Derivative).
Complete With Digital Temperature Indicator 100Mv/°C. This Board Is An Option To The Board Dl 2155Rgt1 Since It Uses Its Oven, The Heating Element And The Temperature Transducers.
The Board Is Supplied Complete With A Set Of Stackable, Plug-In Cables Of Suitable Lengths And Colours And With A Training Manual.
Power Supply: ± 15Vdc, 100Ma And +5Vdc, 150Ma
Experiments
– Analysis Of The Operation Of A Proportional, Proportional-Derivative And Proportional-Integral Control
– Pid Control Circuits
– Pid Controllers Calibration
For more details download catalogue from here
