Model No. DL 2155FIL

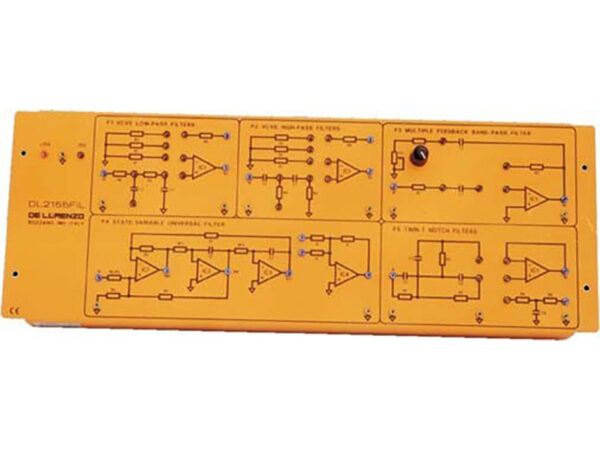

The Board Allows The Study And The Functional Check On Active Filters Carried Out With Operational On Active Filters Carried Out With Operational Amplifiers.
The Board Is Divided Into Five Sections, And In Each One There Is More Than One Filter Of The Same Kind.
It Is Possible To Study, Respectively:
– Low-Pass Filter Vcvs Of The First And Second Order
– High-Pass Filter Vcvs Of The First And Second Order
– Multiple Feedback Band Pass Filter
– Universal Filter Of Variable State Type
– Dual T Band Stop Filters
– The Board Is Supplied Complete With A Set Of Stackable,Plug In Cables Of Suitable Lengths And Colours And With A Training Manual.
– Power Supply: ± 15 Vdc, 750 Ma
Experiments:
– Low-Pass And High-Pass Filters Of The First And Second Order With Butterworth, Bessel And Chebyschev Approximation
– Multiple Feedback Band Pass Filters
– High-Pass, Low-Pass, Band-Pass And Throw Band Filters Of Variable State Type
– Dual T Narrow Band Notch Filters
